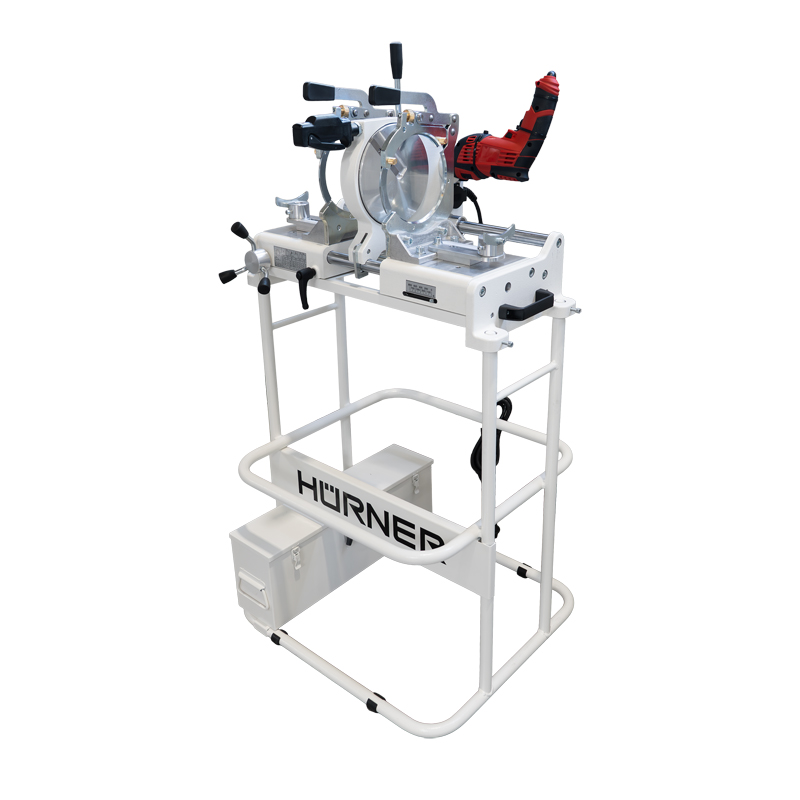

HURNER WORKSHOP MACHINE HWT 160 M+
1 INR/Number
Product Details:
- Condition New
- Voltage 220 Volt (v)
- Rod Diameter 200 mm
- Cooling Method Dry Type/Air Cooled
- Type Welding Machine
- Input Current 27 A
- Power 160-250V Volt (v)
- Click to View more
X
HURNER WORKSHOP MACHINE HWT 160 M+ Price And Quantity
- 1 Number
- 1 INR/Number
HURNER WORKSHOP MACHINE HWT 160 M+ Product Specifications
- New
- Mild Steel
- Welding Machine
- 27 A
- 160-250V Volt (v)
- 220 Volt (v)
- 200 mm
- Dry Type/Air Cooled
- 85%
- Welding Purpose
- High (F)
- 50 Hertz (HZ)
- 50-60 Hertz (HZ)
HURNER WORKSHOP MACHINE HWT 160 M+ Trade Information
- All India
Product Description
This is a practical plastic butt-welding machine for jointing PE and PP pipes and fittings from O. D. 32 160 mm (1" 6") with the heating element process, which caters for PP pipes of up to SDR 11 and PE pipes of up to SDR 17.6.
This movable welder that represents the next generation ships with wide aluminum master clamping assemblies into which steel reducers or (optionally) aluminum reducers can be fitted.
The machine can be used both in the workshop and on worksites. It offers many opportunities for application and is especially suitable for sanitary installations, drain piping, and pipes for conveyance under pressure.
The machine ships with a sturdy stand, an electrical facing tool, an electronically controlled heating element, and all reducer inserts. The master clamps offer flexible positioning at an angle of up to 15 deg., thereby enabling segmented-bend manufacturing in sizes 32 160 mm (1" 6").
TECHNICAL SPECS
| TECHNICAL SPECS | P/N 200-260-... |
| HWT 160M+ (230 V), 32 - 160 MM W/ WIDE ALUMINUM MASTER CLAMPS, INCL. STEEL REDUCERS | -250 |
| HWT 160M+ (110 V), 32 - 160 MM W/ WIDE ALUMINUM MASTER CLAMPS, INCL. STEEL REDUCERS | -350 |
| HWT 160M+ (230 V), 1" - 6" W/ WIDE ALUMINUM MASTER CLAMPS, INCL. STEEL REDUCERS | -550 |
| HWT 160M+ (110 V), 1" - 6" W/ WIDE ALUMINUM MASTER CLAMPS, INCL. STEEL REDUCERS | -950 |
| OPERATING RANGE | O.D. 32 - 160 mm | 1" - 6" |
| MATERIALS | PE, PP |
| INPUT VOLTAGE | 230 V, 50/60 Hz or 110 V, 50 Hz |
| RATED POWER | 1.8 kW |
| WEIGHT OF MACHINE INCL. OF ALL REDUCERS IN CASE | 62 kg |
| OVERALL DIMENSIONS INCL. STAND (W X H X D) | 730 x 1200 x 550 mm |
| REDUCERS | 32, 40, 50, 63, 75, 90, 110, 125, 140 mm | 1", 2", 3", 4" |
| ACCESSORIES | Steel transport box for reducers, user's manual, tools |
